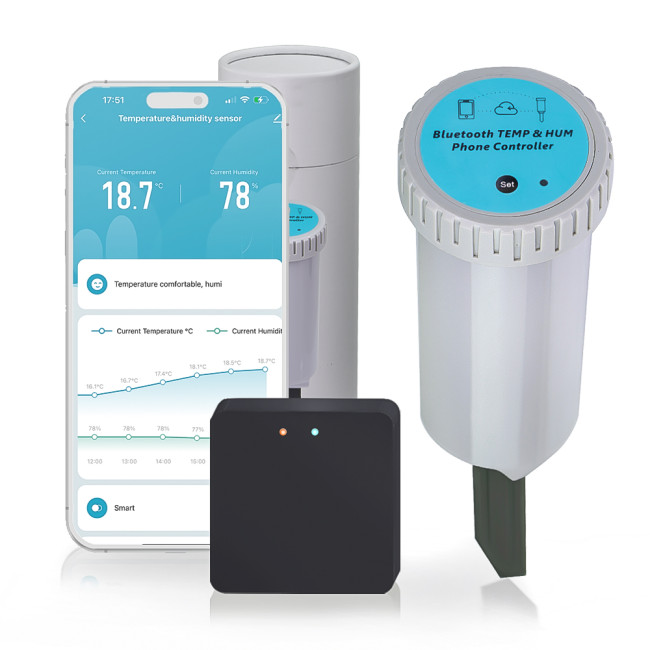

N335 Bluetooth Soil Moisture and Temperature Sensor with Gateway - 2-in-1 Smart Gardening Tool, Adjustable Data ReportingItem NO.: SPY-335

🌱 2-IN-1: The N335 Soil Sensor is powered by 4 AA alkaline batteries (NOT included), while the gateway uses a 5V1A USB power supply. With a clear line-of-sight communication range of up to 60 meters (197 feet) between the sensor and gateway, the device supports global real-time monitoring of soil temperature (-10°C to 80°C, ±0.5°C accuracy) and humidity (0-100% RH, ±1% accuracy). Effortlessly manage environmental data for plant care and agricultural needs.

🌱 Flexible Sensor Data Reporting Settings: Customize the sensor's data reporting frequency from 1 to 120 minutes (in 1-minute increments) to suit various monitoring scenarios. The device delivers highly accurate measurements, making it an indispensable smart tool for farms, greenhouses, and home gardening, ensuring real-time precision in temperature and humidity data.

🌱 User-Friendly APP Interface: The intuitive app design provides easy access to environmental data:
     - Current Data: The top section displays real-time temperature and humidity data with a clear and readable font.
     - Historical Records: View data trends for day, month, and year:
     • Day: Displays hourly averages for the last 24 hours (e.g., 00:00-24:00, with 11:00 showing the average from 10:00-10:59).
     • Month: Shows daily averages for the past 30 days.
     • Year: Displays monthly averages for the last 12 months.
Historical data is securely stored and cannot be exported, ensuring privacy and safety.

🌱 Smart Scene Linkage: The N335 supports advanced automation with customizable conditions:
    - Temperature Control: Automatically activate or stop heating devices when the temperature exceeds or drops below a set range (-20°C to 99.9°C, NOTE: The sensor's actual measurement range is limited to -10°C to 80°C. ).
    - Humidity Control: Start or stop irrigation systems when humidity surpasses the defined threshold (0-100%).
    - Task Management: Combine multiple conditions, set preconditions, and define active time periods for efficient and automated environmental control, enhancing plant management.

🌱 Wide Application Scenarios: Ideal for home gardens, agricultural fields, greenhouses, and indoor plant care. The device supports creating family groups, allowing shared access with family members for collaborative management and monitoring. Its strong expandability seamlessly integrates into modern smart home ecosystems, enhancing convenience and supporting smart agriculture and gardening.


Specification:
• Name: N335 2-IN-1 Bluetooth Soil Sensor with Gateway.
• Sensor Power Supply: 4 x AA alkaline batteries (NOT included).
• Gateway Power Supply: 5V1A USB.
• Battery Life: 6 months to 1 year.
• Connectivity: Bluetooth technology, supports 60m (197FT) open-line communication distance between the sensor and gateway.
• Monitoring Parameters:
   - Soil Humidity: 0-100% RH (±1% accuracy).
   - Air/Soil Temperature: -10 to 80°C (±0.5°C accuracy).
   - Temperature Unit: Switchable between °C/°F.
• Data Reporting Frequency: Adjustable from 1 to 120 minutes (in 1-minute increments).
• Operating Frequency: 2.4 GHz.
• Dimensions:
   - Overall Height: 22 cm (8.7'').
   - Width: 5.8 cm (2.3'').
   - Probe Length: 8.5 cm (3.3'').
• Material:
   - Housing: ABS.
   - Probe: PCB.
• Waterproof Rating: IP67.


⚠ Note:
1. This Bluetooth gateway can support up to 20 Bluetooth Soil Sensors simultaneously. Ensure that the sensors are within the effective communication range of the gateway (up to 60 meters/197 feet in open spaces) for optimal performance. Avoid placing the gateway in areas with heavy interference to maintain stable connections.
2. Battery Replacement:
Avoid replacing the battery in rainy conditions to prevent rainwater from entering the device. Moisture inside the shell may damage the internal components.
3. Proper Sensor Placement:
When using the device, ensure the sensor is fully inserted into the soil until it reaches the bottom for accurate measurements.
4. Sealing Ring Usage:
Always reinstall the sealing ring correctly after replacing the battery. Failure to do so may weaken the waterproof performance.
5 Avoid Damage to the Sensing Plate:
Do not rub the sensing plate against the ground to prevent damage to the circuit board.
