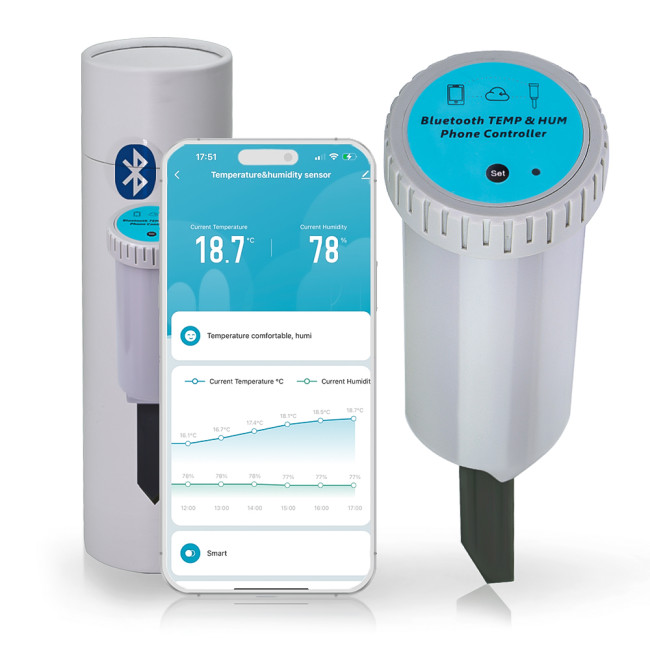

N336 2-IN-1 Bluetooth Soil Sensor – Real-Time Temperature and Humidity Monitoring for Smart GardeningItem NO.: SPY-336

🌱 2-IN-1: The N336 Soil Sensor operates with 4 AA alkaline batteries (NOT included) and does not include a gateway. It offers real-time monitoring of soil temperature (-10°C to 85°C, ±0.5°C accuracy) and humidity (0-100% RH, ±1% accuracy) within Bluetooth range. Ideal for plant care and agricultural needs.

🌱 Flexible Sensor Data Reporting Settings: Customize the sensor's data reporting frequency from 1 to 120 minutes (in 1-minute increments). Designed to deliver precise temperature and humidity readings, the N336 ensures accurate environmental monitoring for farms, greenhouses, and home gardening scenarios.

🌱 User-Friendly APP Interface: The intuitive app displays real-time temperature and humidity data with a clear font. When connected to a gateway (NOT included), the app also provides historical records:
     - Current Data: The top section displays real-time temperature and humidity data with a clear and readable font.
     - Historical Records: View data trends for day, month, and year:
     • Day Mode: Hourly averages for the past 24 hours. (e.g., 00:00-24:00, with 11:00 showing the average from 10:00-10:59).
     • Month: Shows daily averages for the past 30 days.
     • Year: Displays monthly averages for the last 12 months.
Historical data is securely stored and cannot be exported.
Note: Data recording may be incomplete when offline or connected only via Bluetooth without a gateway.

🌱 Smart Scene Linkage: The N336 supports advanced automation with customizable conditions:
    - Temperature Control: Automatically activate or stop heating devices when the temperature exceeds or drops below a set range (-20°C to 99.9°C, NOTE: The sensor's actual measurement range is limited to -10°C to 80°C. ).
    - Humidity Control: Start or stop irrigation systems when humidity surpasses the defined threshold (0-100%).
    - Task Management: Combine multiple conditions, set preconditions, and define active time periods for efficient and automated environmental control, enhancing plant management.

🌱 Wide Application Scenarios: Perfect for home gardens, agricultural fields, greenhouses, and indoor plant care. The N336 supports family group creation, enabling shared access for collaborative management. Seamlessly integrates into smart home systems, enhancing convenience while supporting smart agriculture and gardening.


Specification:
• Name: N336 2-IN-1 Bluetooth Soil Sensor.
• Sensor Power Supply: 4 x AA alkaline batteries (NOT included).
• Battery Life: 6 months to 1 year.
• Connectivity: Bluetooth technology.
• Monitoring Parameters:
   - Soil Humidity: 0-100% RH (±1% accuracy).
   - Air/Soil Temperature: -10 to 80°C (±0.5°C accuracy).
   - Temperature Unit: Switchable between °C/°F.
• Data Reporting Frequency: Adjustable from 1 to 120 minutes (in 1-minute increments).
• Operating Frequency: 2.4 GHz.
• Dimensions:
   - Overall Height: 22 cm (8.7'').
   - Width: 5.8 cm (2.3'').
   - Probe Length: 8.5 cm (3.3'').
• Material:
   - Housing: ABS.
   - Probe: PCB.
• Waterproof Rating: IP67.


⚠ Note:
1. No Gateway Included:
The N336 Soil Sensor does not come with a gateway. It is designed for use with Bluetooth connectivity for real-time monitoring within range. When used without a gateway, the sensor may not record historical data properly, and data may be incomplete or unavailable when the device is offline.
2. Battery Replacement:
Avoid replacing the battery in rainy conditions to prevent rainwater from entering the device. Moisture inside the shell may damage the internal components.
3. Proper Sensor Placement:
When using the device, ensure the sensor is fully inserted into the soil until it reaches the bottom for accurate measurements.
4. Sealing Ring Usage:
Always reinstall the sealing ring correctly after replacing the battery. Failure to do so may weaken the waterproof performance.
5 Avoid Damage to the Sensing Plate:
Do not rub the sensing plate against the ground to prevent damage to the circuit board.
