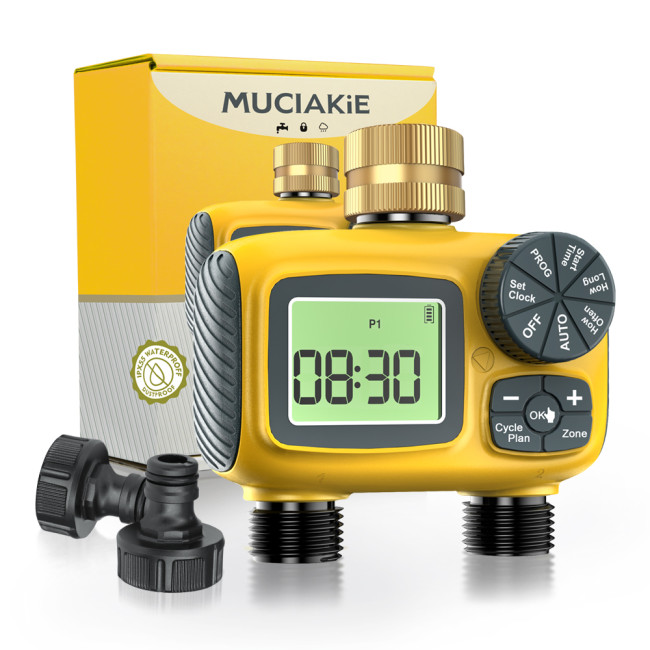

N366 Luxury Digital Sprinkler Timer – 2-Zone Programmable Irrigation Controller with 3 Custom Watering Plans per OutletItem NO.: SPY-366

🌱 Smart Watering Schedule: Features dual outlets, each supporting 1-3 independent watering plans (P1/P2/P3). Customize start times (00:00-23:59), durations (1 minute to 23 hours 59 minutes), and frequencies (daily 1-7 days or weekly cycle, with any combination of Monday to Sunday) to meet diverse irrigation needs. The manual watering mode allows flexible 1-120 minute operation for on-demand watering.

🌱 Rain Delay Function: Activate or deactivate rain delay (1-15 days) in AUTO mode by holding the '+' button for 5 seconds. This smart water-saving feature prevents overwatering during rainy days, ensuring efficient irrigation management.

🌱 Child Lock: Equipped with a child lock to prevent accidental operation. Enable or disable by holding the '-' button for 5 seconds in AUTO mode.

🌱 Low Battery Protection & Power-Off Memory: The valve automatically shuts off when the battery is low to prevent leaks, with a low battery indicator displayed on the screen as a reminder to replace batteries. All programmed settings are retained after power loss, eliminating the need for reconfiguration.

🌱 Automatic Mode & Conflict Resolution: In AUTO mode, the display shows the current time and the next scheduled watering session. If schedules overlap, the earliest plan takes priority; if two schedules have the same time, P1 executes first; if durations conflict, tasks seamlessly transition, ensuring smooth and efficient watering without interruptions.


Specification:
• Product Name: N366 Luxury Dual-Outlet Timer.
• Material: UV-resistant ABS, Brass (Inlet).
• Inlet Size: 3/4'' brass thread.
• Operating Pressure: 0.1~0.8 MPa (14~116 psi).
• Working Temperature: 4.5°C~45°C (40.1°F~113°F).
• Power: 2 x AA Alkaline Batteries (NOT included.) (Do not use rechargeable batteries).
• Waterproof Rating: IP55.
• Usage: For Outdoor or indoor Use.
• Water Outlets: 2 independent outlets (Zone 1 and Zone 2).
• Watering Programs: Supports 1-3 independent watering plans (P1, P2, P3) per zone.
• Manual Watering: 1-120 minutes.

• Watering Schedule Settings:
   - Start Time: 00:00 - 23:59.
   - Frequency (How Often):
      • By Day: Every 1-7 days.
      • By Week: Select specific days (Monday to Sunday).
   - Duration (How Long): 1 minute to 23 hours 59 minutes.

• Rain Delay:
   - Delay Duration: 1~15 Days.
   - Activation: Hold '+' button for 5s in Auto mode.
• Child Lock:
   - Activation: Hold '-' button for 5s in Auto mode.
• Manual Watering:
   -  Manual Duration: 1~120 Minutes.
• Power Failure Memory: Retains programmed settings after power failure or battery replacement.

• Automatic Mode:
   - Display: Shows current time and next watering time, cycling every 1.5 seconds.
   - Conflict Handling:
      • If watering times overlap, the earliest plan takes priority.
      • If plans start at the same time, P1 is executed by default.
      • Overlapping tasks are seamlessly connected.

⚠ Note:
1. Battery Installation & Usage:
Use two brand-new AA alkaline batteries. Do not mix old and new batteries or use carbon or rechargeable batteries. Ensure correct battery polarity during installation.

2. Battery Replacement:
When the low battery indicator appears on the screen, replace the batteries promptly to prevent valve malfunction or leakage. Remove batteries if the device will not be used for an extended period to avoid potential damage.

3. Frequency Settings:
    - Daily Cycle: Water every 1-7 days.
    - Weekly Cycle: Select specific days (Monday to Sunday).
    - If no specific days are selected, the system will default to Sunday (SU).

4. Schedule Conflict Management:
    - If multiple schedules overlap, the earliest schedule takes priority.
    - If two schedules start at the same time, P1 will run by default.
    - If watering times partially overlap, the system seamlessly executes tasks without interruption.

5. Troubleshooting:
    • Leakage Issues:
       - Ensure the rubber washer is installed properly. Verify that the faucet is 3/4-inch compatible.
       - If leakage persists, wrap Teflon tape around the faucet threads.
    • Water Flow Does Not Stop:
       - Turn off the faucet, set the dial to AUTO, then manually activate watering for 5-7 seconds. Repeat 3-5 times to reset the valve. Or simply remove and reinstall the batteries.
    • Device Not Responding: Ensure settings are saved by pressing the OK button after adjustments.
